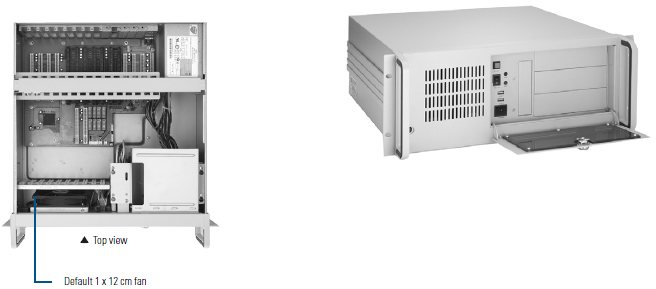

Specifications Specifications Standard Color |
Beige |
|---|---|
| Construction |
Heavy-duty steel |
| Drive Capacity |
Exposed 3 x 5.25" HDD drive bay and 1 x 3.5" HDD drive bay; internal 1 x 3.5" HDD drive bay |
| Cooling |
1 x 12 cm ball-bearing fan (78 CFM/each) with a removable filter |
| Front Panel Indicators |
1 x power on/off; 1 x HDD |
| Front Panel Controls |
1 x power on/off; 1 x system reset |
| Front Panel Connectors |
2 x USB; 1 x PS2 mini-DIN keyboard |
| Pre-punched Panel |
1 x 25-pin; 1 x DIN 5-pin keyboard |
| Hold-down Clamp |
height adjustable clamps with rubber cushions |
| System Board |
SBCs or 12" x 9.6" ATX MB or IMB series |
| Expansion Interface |
14-slot backplane |
| Speaker |
1 x 0.4W speaker |
| Operating Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| RangeDimensions |
482.6 mm (19") (W) x 450 mm (17.7") (D) x 177 mm (7")(H) |
| Weight (net/gross) |
15 kg (33.07 lb)/16.3 kg (35.94 lb) |
Power Supply Specifications| Items | Watt | Input | Specifications Output | MTBF |
|---|---|---|---|---|
| PS300- XP2 |
ATX 300W (PFC) |
AC 90~264V (Auto) |
+5V @ 30/21.5A +12V @ 15A +3.3V @ 15/28A -12V @ 0.8A +5VSB @ 2A -5V @ 0.3A |
100,000 hours |
| PS400- XP2 |
ATX 400W (PFC) |
AC 90~264V (Auto) |
+5V @ 20A +12V1 @ 16A +12V2 @ 16A -12V @ 0.5A +3.3V @ 20A +5VSB @ 2.5A |
100,000 hours |
| PS500- XP2 |
ATX 500W (PFC) |
AC 90~264V(Auto) | +5V @ 24A +12V @ 34A +12V1 @ 17A +12V2 @ 17A -12V @ 0.8A +3.3V @ 24A +5VSB @ 2.5A |
100,000 hours |
Backplane Options PICMG 1.0| Models | Slots per Segment (ISA/PCI/PCIe/CPU) |
Segment |
|---|---|---|
| ATX6022/13L | 8/4/1 | Single |
| ATX6022/14G | 1/12/1 | Single |
| ATX6022/14GP7 | 6/7/1 | Single |
| ATX6022/14 | 9/4/1 | Single |
PICMG 1.3| Models | Slots per Segment (ISA/PCI/PCIe/CPU) |
Segment |
|---|---|---|
| FAB100 | 4/4/5/1 | Single |
| FAB101 | 0/13/0/1 | Single |
| FAB112 | 0/10/2/1 | Single |
| FAB113 | 0/4/8/1 | Single |
| FAB114 | 0/8/4/1 | Single |
| FAB118 | 0/7/6/1 | Single |
Ordering Information| AX61400T(W)B/X400 |
14-slot version, with one 12 cm fan, ATX 400W power supply |
|---|---|
| AX61400T(W)B/X300 |
14-slot version, with one 12 cm fan, ATX 300W power supply |
| AX61400T(W)M/X400 |
MB version, with one 12 cm fan, ATX 400W power supply |
| * Specifications and certifications are based on options and may vary. | |
** T-Black color; W-Beige color

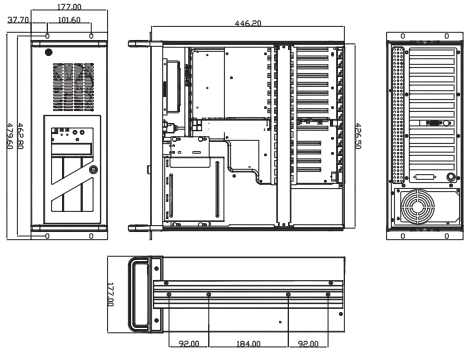

Dimensions
